Detail Information

Table Size (mm):	602000 Mm (2.3678.74 Inches)	Table Travel (X) (mm):	2000 Mm
Table Travel (Y) (mm):	2000 Mm	Table Travel (Z) (mm):	60 Mm
Number Of Axes:	2	Travel (W-axis) (mm):	2000 Mm
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2022	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Motor	Positioning Accuracy (X Axis) Mm:	0.1
Positioning Accuracy (Y Axis) Mm:	0.1	Positioning Accuracy (Z Axis) Mm:	0.1
No. Of Spindles:	Twin	Range Of Spindle Speed(r.p.m):	150 R.p.m
Spindle Motor Power(kW):	2.5	Type:	Horizontal
Condition:	New	Voltage:	220V/380V/CUSTOMIZED
Weight (T):	150 T	Warranty:	1 Year, 1 Year
Key Selling Points:	Easy To Operate	Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining
Showroom Location:	None	Model:	MMP-60T
Name:	Portable Line Boring Machine	Brand:	MMP
Power Unit:	2.5KW	Boring Diameter:	63.5-609.6 Mm (2.5 To 24 Inch))
Boring Stroke:	390mm	Rotating Speed:	0-140rpm Variable Speed
Axial Feed Speed:	0-100(mm/min)	Application:	Construction
Port:	XIAMEN

Product Description

PRODUCTS DESCRIPTION

Why TO Choose The MITNIK MACHINE PARTS-MMP

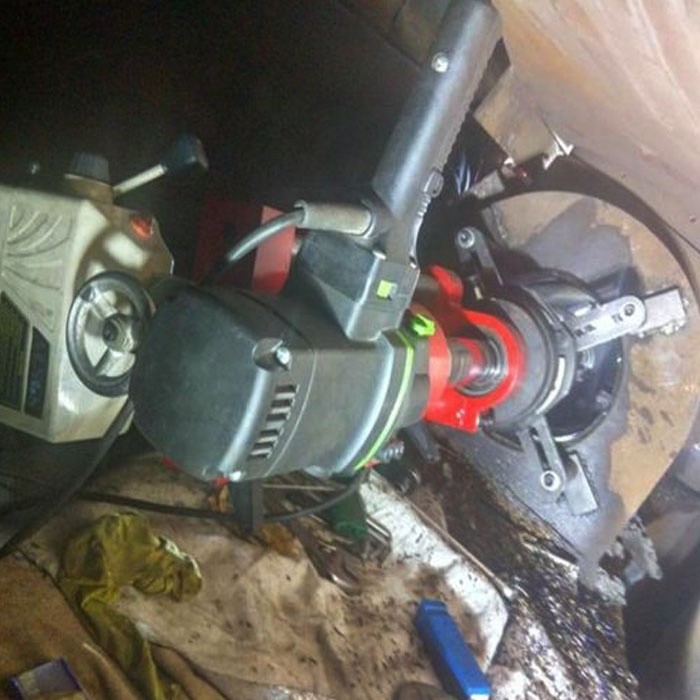

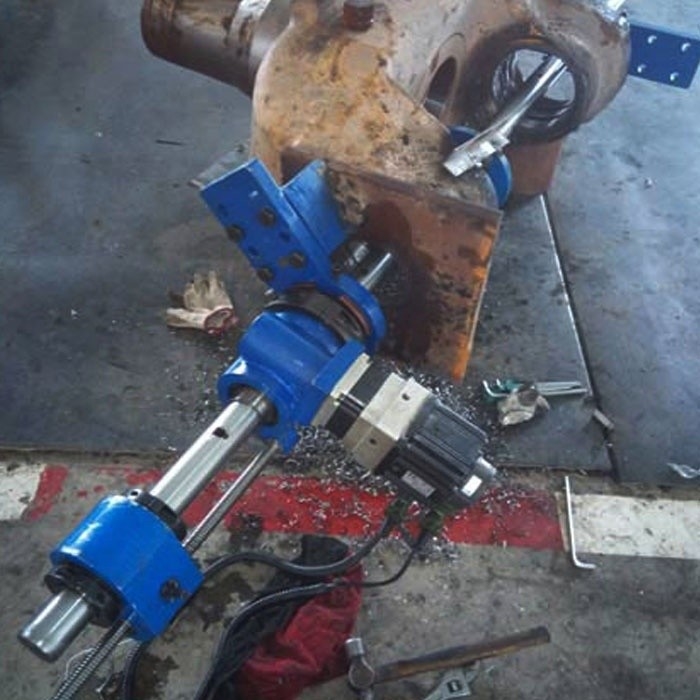

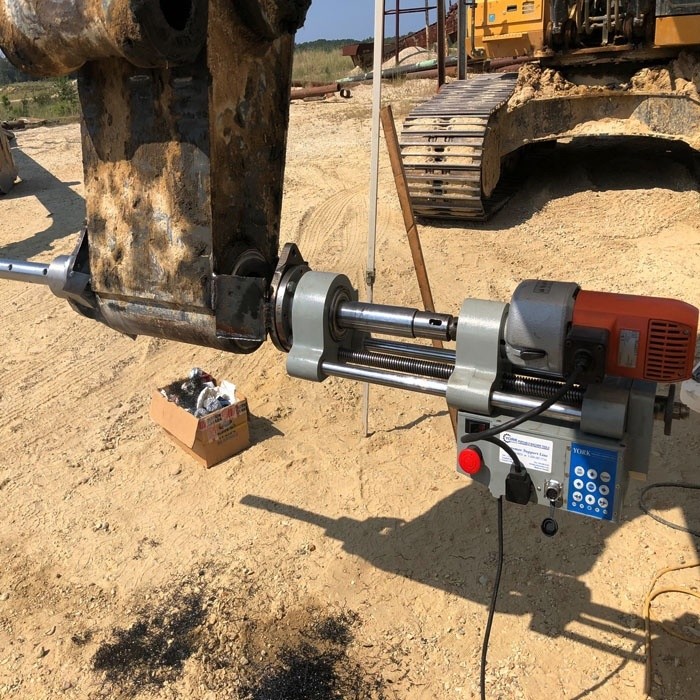

MMP Portable Line Boring Machine for Construction Machinery Repair:

MMP60-T Portable Line Boring Machine has strong machining capacity in repairing bores, steel structure, hinge hole, steam turbine wheel connection hole, pump, valve, etc. A versatile and modular mobile line boring machine offering a choice of electric and hydraulic motor types to rotate the boring bar, with a mechanical drive used for the feed assembly.
Choose a standard machine kit or configure your own machine to suit your specific requirements.

Since its versatile, light-weight features, MMP60-T mobile line boring machine is widely used in marine, shipyard, petrochemical, refinery industries, etc. All parts have their own unique advantage and provide guarantee for steady and accurate operation for the whole system. Contact us right now for more info, or check out our entire line of line boring machines.

_{MMP60-T Portable Line Boring Machine Specification}

Standard Boring Bar (customized)
60*2000 mm (2.36*78.74 Inches)
30mm and 35mm boring bar optional
Boring Diameter
60mm boring bar: 63.5-609.6 mm (2.5″ to 24″)
30mm & 60mm boring bar: 38.1 to 609.6mm (1.5″ to 24″)
Power Option
Electric motor 2.2 KW 3.0HP
Servo motor 2.5 KW 3.3 Hp
Hydraulic motor 15 KW 20.4 Hp
Variable Tool Feed Rate
0 to 0.024″/r (0-0.6mm/r)

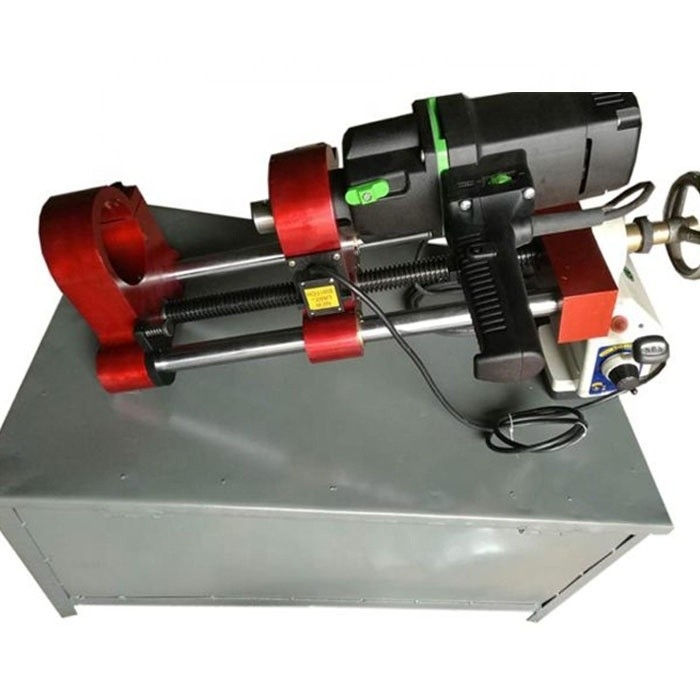

MMP Portable Line Boring Machine Performances:

1.Portable & Light-Weight
Aluminum alloy shell machine body, weight only 13Kg.

2.Easy And Flexible Setup
The boring bar goes through the machine body to ensure the coaxial of the main body and the boring bar. The machine body can be installed at any position of the boring bar and can be installed in a narrow space.

3.Durable And Reliable Performance
The patented feed mechanism is a reliable and durable structure with almost no fault.Infinite variable speed feed mechanism can achieve forward feed, reverse feed, and manual feed function.

4.Powerful And Optional Power
Powerful AC 2.2Kw drive motor, variable speed control by frequency converter. General motor, stable, easy maintenance. The connection between the motor and the machine body is convenient to disassemble, and the suitable motor can be replaced according to the local conditions. Optional power supply: 220V single phase or 380V three-phase power.

5.Customizable Portable Line Boring Machine

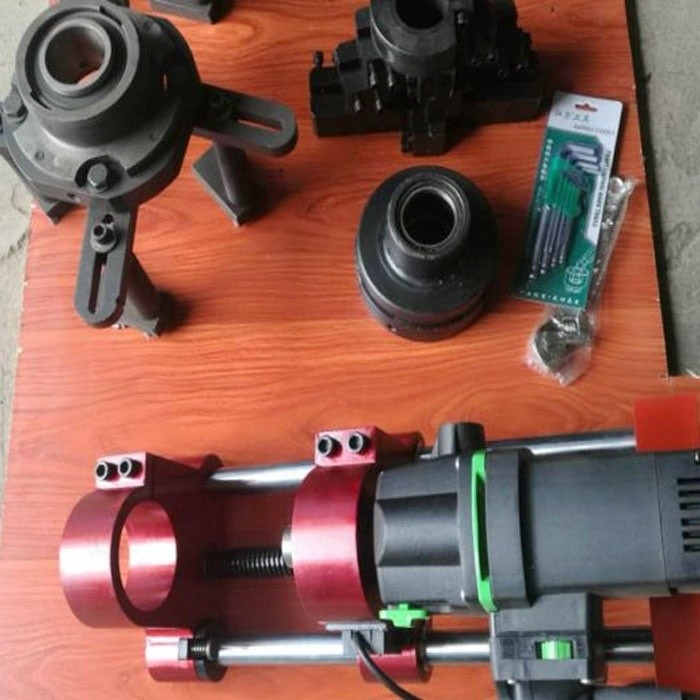

Bearing mount assembly can be designed according to needs. Adjustable mechanism ensures the coaxality of boring bar, main body and bearing mount assembly.

6.High-Tech Design
Advanced worm gear reducer, high efficiency and high torque output, cutting ability 8mm in the radius.

7.Precise Performance
The slotless structure avoids the bending deformation of the boring bar due to the machining stress.

8.Humanized Design
Feed stroke can be easily changed.
Easy to operate with the remote handle. The electric control box is separated from the mainbody, avoiding the loosening of
electric lines caused by the vibration the machining process.

PRODUCT SPECIFICATIONS

MITNIK/MMP-Portable Line Boring Machine
Model	Boring Diameter	Standard Boring Bar (Customizable)	Feed Speed	Power Optional
MMP-50B	55-350 mm (2.17-13.78 Inches)	501500 mm (1.9759 Inches)	0-0.5mm/r	2.2Kw electric motor
MMP-60B	100-500 mm (3.93-19.69 Inches)	602000 mm (2.3678.74 Inches)		2.2 Kw electric motor 220V single phase or 380V three-phase power
MMP-60YK	65-400 mm (2.56-15.75 Inches)	601500 mm (2.3659 Inches)		1.8Kw Germany electric motor
MMP-40T	45-200 mm (1.77-7.87 Inches)	401500 mm (1.5759 Inches)	0-100(mm/min)	1.5kw electric motor
MMP-50T	55-250 mm (2.17-9.84 Inches)	501500 mm (1.9759 Inches)	0-100(mm/min)	1.5kw electric motor
MMP-60T	60mm boring bar: 63.5-609.6 mm (2.5″ to 24″) 30mm & 60mm boring bar: 38.1 to 609.6mm (1.5″ to 24″)	602000 mm (2.3678.74 Inches) 30mm and 35mm boring bar optional	Variable Tool Feed Rate 0 to 0.024″/r (0-0.6mm/r)	Electric motor 2.2 KW 3.0HP Servo motor 2.5 KW 3.3 Hp Hydraulic motor 15 KW 20.4 Hp
MMP-90T	95-900 mm (3.74-35.43 Inches)	902000 mm (3.5478.74 Inches)	0-0.6mm/r	Hydraulic/Servo motor 3KW
MMP110T	180-1000 mm (7.09-39.37 Inches)	1102500 mm (4.3398.43 Inches)	180-1000 mm (7.09-39.37 Inches)	Hydraulic/Servo motor 3KW

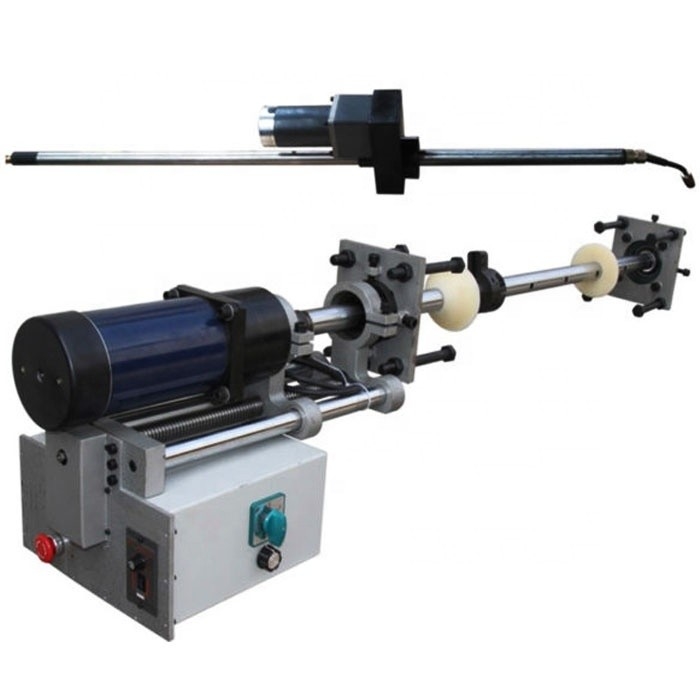

MITNIK/MMP-Portable Line Boring Machine with Welding Machine
Model	Inner Welding and Welding torch length	Stroke	Feed Speed	Power Option
MMP-40TW	Inner Welding 50-300 mm (1.97-11.8 Inches) Welding torch length 1200 mm (47.2 Inches)-customizable	390 mm (15.35 Inches)-customizable	0-100(mm/min)	1.5kw electric motor
MMP-50TW	Inner Welding 50-300 mm (1.97-11.8 Inches) Welding torch length 1200 mm (47.2 Inches)-customizable	390 mm (15.35 Inches)-customizable	0-100(mm/min)	1.5kw electric motor

Please verify part number prior to order.

Thanks for viewing our listings. Please click "Ask A Question", or call us if you have a parts need that you do not see listed here.

We will do our best to locate the parts you need, and make every effort to save you money.
For parts information in English please CONTACT US

MITNIK PARTS PACKING

RECOMMEND PRODUCTS

MITNIK COMPANY PROFILE

MITNIK MACHINE PARTS(MMP BRAND) is the worldwide leader in replacement parts and original parts and accessories for Engineering Machine, Construction Machine, Industrial Truck and Agricultural Equipment over 20 years old.

MITNIK MACHINE PARTS have set up a one-stop shopping platform for engineering construction machinery parts, and the products:involve: excavator&bulldozer undercarriage (track roller, carrier roller, track link, track idler, track link assy, track shoe, segment group, sprocket, bushing, pin, bolt&nut), engaging tools(bucket teeth, bucket tip, bucket, cutting edge, end bit), engine parts (excavator&bulldozer engine parts, engineering truck engine parts etc..), hydraulic parts (hydraulic pump, hydraulic cylinder, quick couple, hydraulic track link pusher machine), dump truck parts, concrete machine parts( easy wearing parts, blades, mixer, shaft, electrical parts).

With more than 20 years experience on heavy duty machinery spare parts sales, our important customers are mainly distributed in South- East Asia, Mid-East, South America and some East European countries.

MITNIK COMPANY ADVANTAGES

SALES AND SERVICE NETWORK

Project in Europe

Project in Australia

Project in Brazil

FAQ

1. You are a trader or a manufacture? MITNIK MACHINE PARTS with one-stop shopping platform for engineering construction machinery parts as MITNIK have our own factory and storage warehouse and some parts of them were supply by our Joint Stock Partnership to ensure to provide excellent products and service to our customers, at competitive prices.We are manufactuer and trade integration business, our factory located on Quanzhou Nanan Distric, and our sales department is in City centre of Xiamen. 2. How can I be sure the part will fit my excavator? Give us correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing. 3. How about the payment terms? We usually accept T/T or Trade Assurance. other terms also could be negotiated. 4. What is your minimum order? It depends on what you are buying. Normally, our minimum order is one 20’ full container and LCL container (less than a container load) can be acceptable. 5. What is your delivery time? FOB Xiamen or any Chinese port : 20 days . If there are any parts in stock , our delivery time is only 0-7 days. 6. What about Quality Control? We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
