MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works

Basic Information
Place of Origin: Fujian, China
Brand Name: MMP
Price: $1,600.00/sets 1-19 sets
Packaging Details: Export Standard Package
Supply Ability: 50 Set/Sets per Month
Detail Information
Table Size (mm): 110*2500 Mm (4.33*98.43 Inches) Table Travel (X) (mm): 2500 Mm
Table Travel (Y) (mm): 110 Mm Table Travel (Z) (mm): 110 Mm
Number Of Axes: 2 Travel (W-axis) (mm): 2500 Mm
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product 2022 Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Motor Positioning Accuracy (X Axis) Mm: 0.1
Positioning Accuracy (Y Axis) Mm: 0.1 Positioning Accuracy (Z Axis) Mm: 0.1
No. Of Spindles: Twin Range Of Spindle Speed(r.p.m): 100 R.p.m
Spindle Motor Power(kW): 5 Type: Horizontal
Condition: New Voltage: 220V/380V/CUSTOMIZED
Weight (T): 180 T Warranty: 1 Year, 1 Year
Key Selling Points: Easy To Operate Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining
Showroom Location: None Model: MMP-110T
Name: Portable Line Boring Machine Brand: MMP
Power Unit: 5KW Boring Diameter: 1110*2500 Mm (4.33*98.43 Inches)
Boring Stroke: 390mm Rotating Speed: 0-0.6mm/r
Axial Feed Speed: 0-100(mm/min) Application: Construction
Port: XIAMEN

Product Description

PRODUCTS DESCRIPTION
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 0
Why TO Choose The MITNIK MACHINE PARTS-MMP
MMP Portable Line Boring Machine for Construction Machinery Repair:
MMP110-T line boring machine offers easy, flexible setup, a high power-to-weight ratio and high-speed operation to boost productivity. Adaptable to a huge range of bore diameters, from 180 to 1000 mm (7.09 – 39.37 inches). It makes your on-site bore repair much easier.

contact us right now for more info, or check out our entire line of line boring machines.
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 1
MMP110-T Portable Line Boring Machine Specification
Standard Boring Bar(customized)
110*2500 mm (4.33*98.43 Inches)

Boring Diameter
180-1000 mm (7.09-39.37 Inches)

Feed Speed
0-0.6mm/r

Power Option
Hydraulic motor
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 2
MMP Portable Line Boring Machine Performances:

1.Portable & Light-Weight
Aluminum alloy shell machine body, weight only 13Kg.

2.Easy And Flexible Setup
The boring bar goes through the machine body to ensure the coaxial of the main body and the boring bar. The machine body can be installed at any position of the boring bar and can be installed in a narrow space.

3.Durable And Reliable Performance
The patented feed mechanism is a reliable and durable structure with almost no fault.Infinite variable speed feed mechanism can achieve forward feed, reverse feed, and manual feed function.

4.Powerful And Optional Power
Powerful AC 2.2Kw drive motor, variable speed control by frequency converter. General motor, stable, easy maintenance. The connection between the motor and the machine body is convenient to disassemble, and the suitable motor can be replaced according to the local conditions. Optional power supply: 220V single phase or 380V three-phase power.

5.Customizable Portable Line Boring Machine
Bearing mount assembly can be designed according to needs. Adjustable mechanism ensures the coaxality of boring bar, main body and bearing mount assembly.

6.High-Tech Design
Advanced worm gear reducer, high efficiency and high torque output, cutting ability 8mm in the radius.

7.Precise Performance
The slotless structure avoids the bending deformation of the boring bar due to the machining stress.

8.Humanized Design
Feed stroke can be easily changed.
Easy to operate with the remote handle. The electric control box is separated from the mainbody, avoiding the loosening of
electric lines caused by the vibration the machining process.
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 3
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 4
PRODUCT SPECIFICATIONS
MITNIK/MMP-Portable Line Boring Machine
Model
 Boring Diameter
Standard Boring Bar
(Customizable)
Feed Speed
Power Optional
MMP-50B
55-350 mm (2.17-13.78 Inches)
50*1500 mm (1.97*59 Inches)
0-0.5mm/r
2.2Kw electric motor
MMP-60B
100-500 mm (3.93-19.69 Inches)
60*2000 mm (2.36*78.74 Inches)

2.2 Kw electric motor
220V single phase or 380V three-phase power
MMP-60YK
65-400 mm (2.56-15.75 Inches)
60*1500 mm (2.36*59 Inches)

 1.8Kw Germany electric motor
MMP-40T
45-200 mm (1.77-7.87 Inches)
40*1500 mm (1.57*59 Inches)
0-100(mm/min)
1.5kw electric motor
MMP-50T
55-250 mm (2.17-9.84 Inches)
50*1500 mm (1.97*59 Inches)
0-100(mm/min)
1.5kw electric motor
MMP-60T
60mm boring bar: 63.5-609.6 mm (2.5″ to 24″)
30mm & 60mm boring bar: 38.1 to 609.6mm (1.5″ to 24″)
60*2000 mm (2.36*78.74 Inches)
30mm and 35mm boring bar optional
Variable Tool Feed Rate
0 to 0.024″/r (0-0.6mm/r)
Electric motor 2.2 KW 3.0HP
Servo motor 2.5 KW 3.3 Hp
Hydraulic motor 15 KW 20.4 Hp
MMP-90T
95-900 mm (3.74-35.43 Inches)
90*2000 mm (3.54*78.74 Inches)
0-0.6mm/r
Hydraulic/Servo motor 3KW
MMP110T
180-1000 mm (7.09-39.37 Inches)
110*2500 mm (4.33*98.43 Inches)
180-1000 mm (7.09-39.37 Inches)
Hydraulic/Servo motor 3KW
MITNIK/MMP-Portable Line Boring Machine
with Welding Machine




Model
Inner Welding and
Welding torch length
Stroke
Feed Speed
Power Option
MMP-40TW
Inner Welding 50-300 mm (1.97-11.8 Inches)
Welding torch length
1200 mm (47.2 Inches)-customizable
390 mm (15.35 Inches)-customizable
0-100(mm/min)
1.5kw electric motor
MMP-50TW
Inner Welding
50-300 mm (1.97-11.8 Inches)
Welding torch length
1200 mm (47.2 Inches)-customizable
390 mm (15.35 Inches)-customizable
0-100(mm/min)
1.5kw electric motor
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 5
Please verify part number prior to order.

Thanks for viewing our listings. Please click "Ask A Question", or call us if you have a parts need that you do not see listed here.

We will do our best to locate the parts you need, and make every effort to save you money.
For parts information in English please CONTACT US

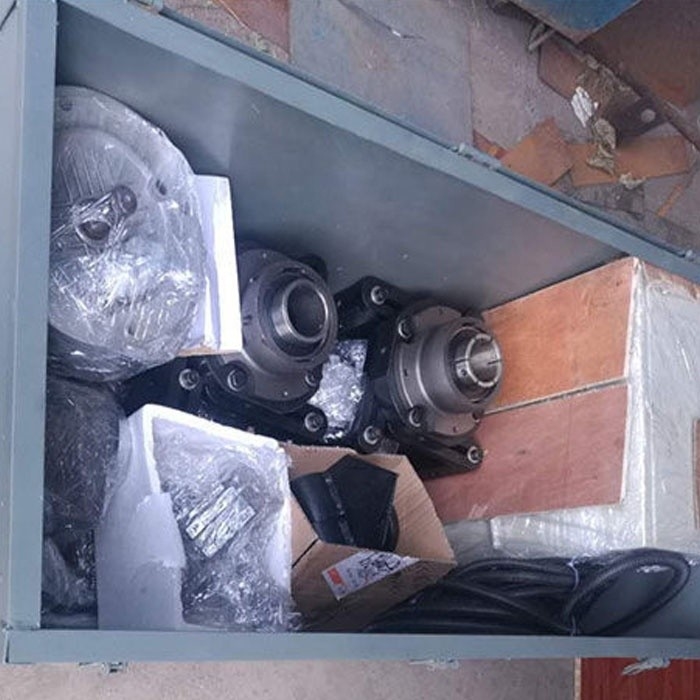

MITNIK PARTS PACKING
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 6
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 7
RECOMMEND PRODUCTS
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 8
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 9
MITNIK COMPANY PROFILE
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 10
MITNIK MACHINE PARTS(MMP BRAND) is the worldwide leader in replacement parts and original parts and accessories for Engineering Machine, Construction Machine, Industrial Truck and Agricultural Equipment over 20 years old.

MITNIK MACHINE PARTS have set up a one-stop shopping platform for engineering construction machinery parts, and the products:involve: excavator&bulldozer undercarriage (track roller, carrier roller, track link, track idler, track link assy, track shoe, segment group, sprocket, bushing, pin, bolt&nut), engaging tools(bucket teeth, bucket tip, bucket, cutting edge, end bit), engine parts (excavator&bulldozer engine parts, engineering truck engine parts etc..), hydraulic parts (hydraulic pump, hydraulic cylinder, quick couple, hydraulic track link pusher machine), dump truck parts, concrete machine parts( easy wearing parts, blades, mixer, shaft, electrical parts).

With more than 20 years experience on heavy duty machinery spare parts sales, our important customers are mainly distributed in South- East Asia, Mid-East, South America and some East European countries.
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 11
MITNIK COMPANY ADVANTAGES
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 12
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 13
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 14
SALES AND SERVICE NETWORK
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 15
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 16
Project in Europe
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 17
Project in Australia
MMP-110T 2 In 1 Portable Hydraulic Boring And Welding Machine for Construction Works 18
Project in Brazil
FAQ


1. You are a trader or a manufacture? MITNIK MACHINE PARTS with one-stop shopping platform for engineering construction machinery parts as MITNIK have our own factory and storage warehouse and some parts of them were supply by our Joint Stock Partnership to ensure to provide excellent products and service to our customers, at competitive prices.We are manufactuer and trade integration business, our factory located on Quanzhou Nanan Distric, and our sales department is in City centre of Xiamen. 2. How can I be sure the part will fit my excavator? Give us correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing. 3. How about the payment terms? We usually accept T/T or Trade Assurance. other terms also could be negotiated. 4. What is your minimum order? It depends on what you are buying. Normally, our minimum order is one 20’ full container and LCL container (less than a container load) can be acceptable. 5. What is your delivery time? FOB Xiamen or any Chinese port : 20 days . If there are any parts in stock , our delivery time is only 0-7 days. 6. What about Quality Control? We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
