100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support

Basic Information
Place of Origin: Fujian, China
Brand Name: MMP
Certification: ISO9001
Price: $2,500.00/sets 1-19 sets
Packaging Details: Export Standard Package
Detail Information
Condition: New Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty: 1 Year, 1200-2400hrs Application: Excavator&Bulldozer Track Link Repair
Model: MMP100C/MPP150C/MMP200C Capacity: 100T/150T/200T
Track Pin Diameter: 32mm-65mm Color: Yellow/Black
Weight: 280-380KGS After Warranty Service: Video Technical Support
After Support Service: Online Support Port: CHINA PORT

Product Description

PRODUCTS DESCRIPTION
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 0
MITNIK MACHINE PARTS-MMP
Your 1st Choice in Spare Parts For Excavator&Bulldozer,
Earthmoving Machine and Other Construction Machines
Why TO Choose The MITNIK PARTS

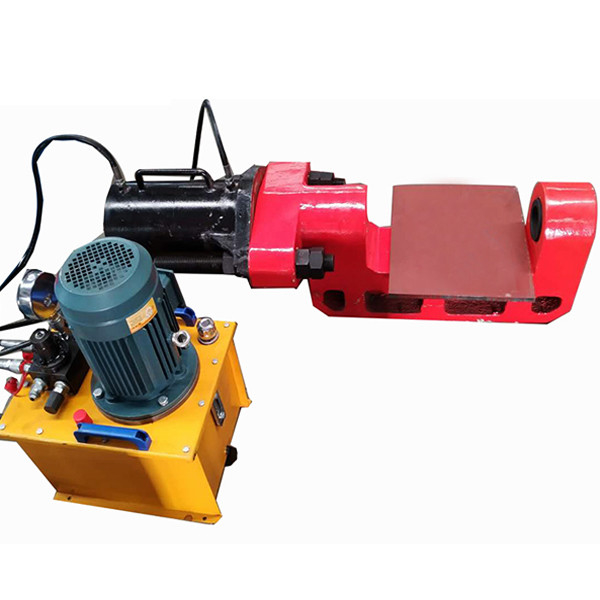

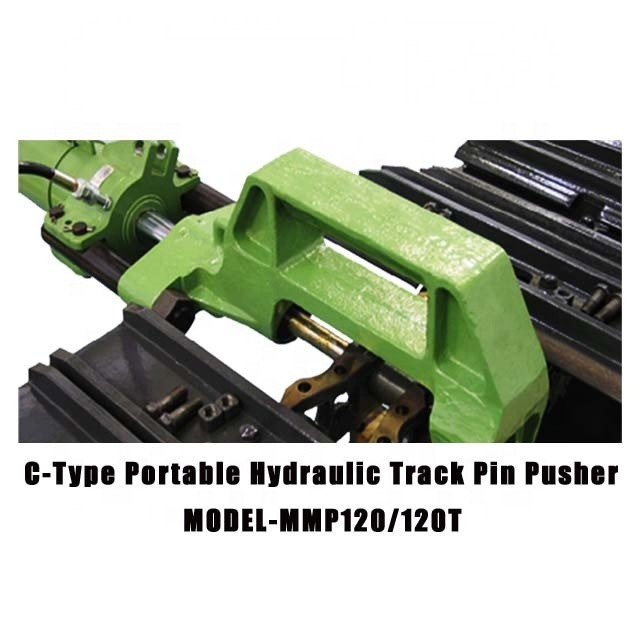

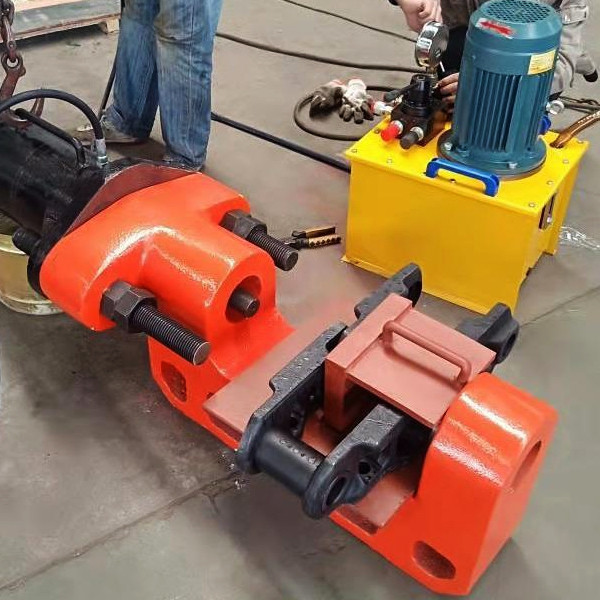

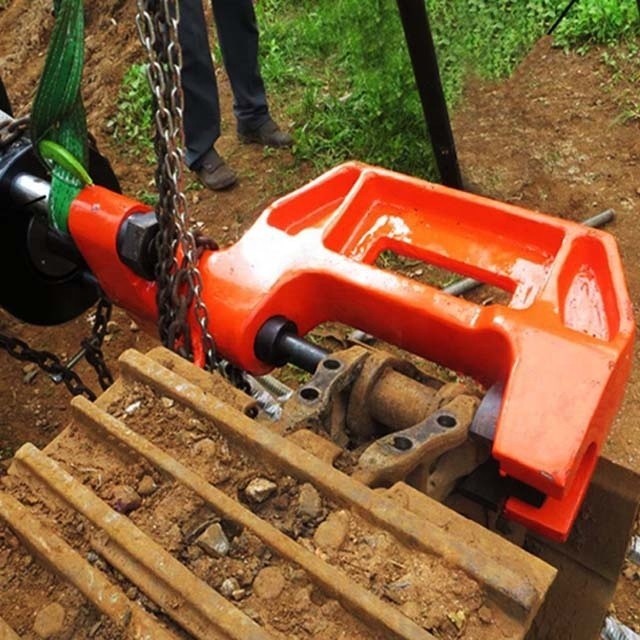

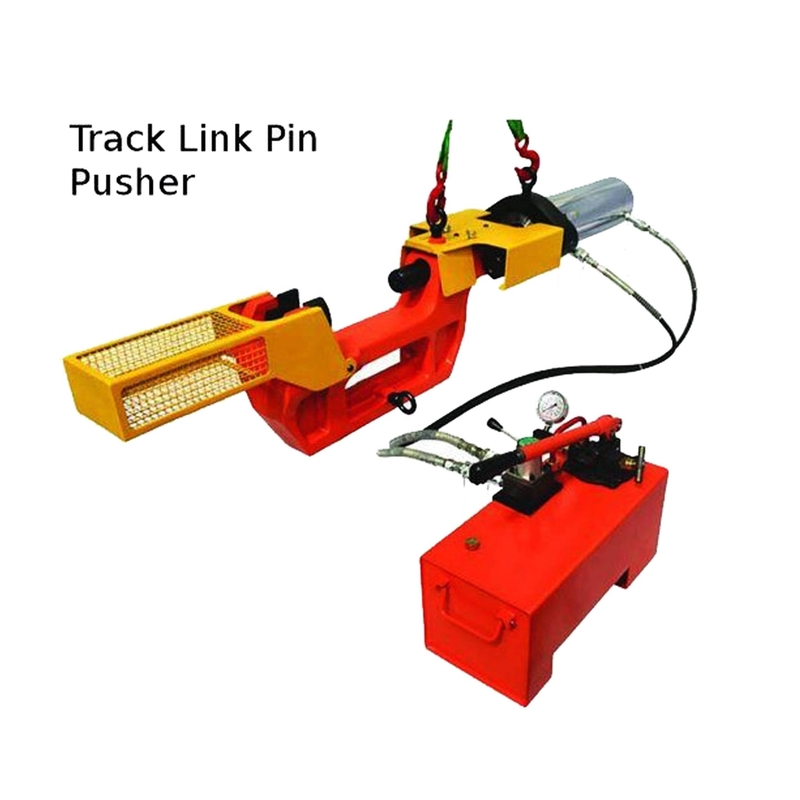

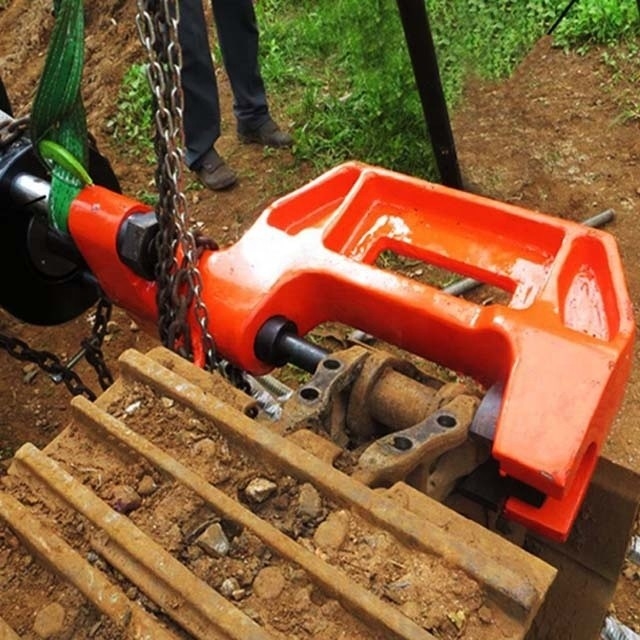

Track Link Press Machine for Excavator&Bulldozer Repair:
Track Link Pin Pusher /Installer is specially designed for tracked machines, tractors,loaders, shovels, excavators, etc. It is
suitable to use with JCB, Caterpiller, Komatsu and Poclain make track machines. It is safe and simple to use. Hydraulic force ensures smooth operation, thereby avoiding damage to the components of the track assembly.

The track link pin press is a special tool by utilizing the conversion from hydraulic energy into mechanical energy to
dis-assembly the track pin of a crawler excavator. Manual, electrical or manual and electrical pump is used as a power source to move the hydraulic jack forward so that the pin can be removed smoothly. Instead of gas cutting and hammering, it ensures that the track is intact. It is an ideal special tool for track excavator maintenance and assembly.

Track Pin Press Pusher Features :
1.Portable for in field repair .
2.Double acting hydraulic cylinder for one-stroke removal or installation.
3.Tooling sets for pin sizes adjustments.
4.Storage case to house all components.
5.Cast steel frame construction for extended durability.
6.Eliminate dangerous removal methods.
7.Avoid machine component damage.
8.Reduced labour hours.
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 1
Performance
1.Portable design makes you press pins at your work places more easily.;
2.Using reasonable "U" frame to ensure the intensity of the machine;
3.Hydraulic power and bidirectional hydrauic valve make it easily to operate;
4. The large diameter cylinder can provide a force up to 100T.
Material
35MnB
Finish
Smooth
Colors
as customer
Technique
Forging / casting
Capacity
100T
Warranty time
1 year
Certification
ISO9001
Delivery Time
Within 5-17 days after contract established
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 2
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 3
PRODUCT SPECIFICATIONS
MITNIKMACHINEPARTS-MMP Track Link Press Machine Technical Parameters
Product Name
Capacity
Assembly/Disassembly Track Pitch
Suitable for Mahcine Rerefence
MMP C Type Track Link Press Machine
80T
within 154mm
6-22T Excavator
100T
154-190mm
22-26T Excavator
150T
190-216mm
33-37T Excavator
200T
228-260mm
48T Excavator
MMP 4 Screw Type Track Link Press Machine
300T
Above 260mm
CATD8 D9 D10 D11N etc...
MMP Screw Type Track Pin Pusher Machine
100T
within 216mm
20-37T Excavator
150T
within 260mm
40T Excavator
200T
260mm
50T Excavator
Please verify part number prior to order.

Thanks for viewing our listings. Please click "Ask A Question", or call us if you have a parts need that you do not see listed here.

We will do our best to locate the parts you need, and make every effort to save you money.
For parts information in English please CONTACT US

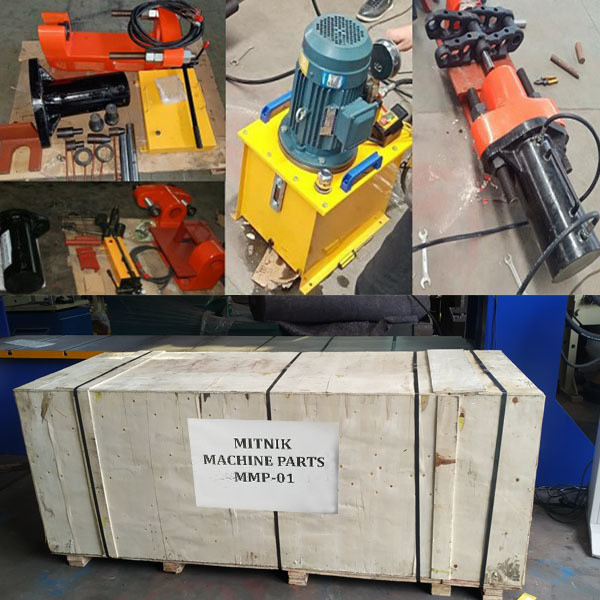

MITNIK PARTS PACKING
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 4
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 5
RECOMMEND PRODUCTS
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 6
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 7
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 8
MITNIK COMPANY PROFILE
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 9
MITNIK MACHINE PARTS(MMP BRAND) is the worldwide leader in replacement parts and original parts and accessories for Engineering Machine, Construction Machine, Industrial Truck and Agricultural Equipment over 20 years old.

MITNIK MACHINE PARTS have set up a one-stop shopping platform for engineering construction machinery parts, and the products:involve: excavator&bulldozer undercarriage (track roller, carrier roller, track link, track idler, track link assy, track shoe, segment group, sprocket, bushing, pin, bolt&nut), engaging tools(bucket teeth, bucket tip, bucket, cutting edge, end bit), engine parts (excavator&bulldozer engine parts, engineering truck engine parts etc..), hydraulic parts (hydraulic pump, hydraulic cylinder, quick couple, hydraulic track link pusher machine), dump truck parts, concrete machine parts( easy wearing parts, blades, mixer, shaft, electrical parts).

With more than 20 years experience on heavy duty machinery spare parts sales, our important customers are mainly distributed in South- East Asia, Mid-East, South America and some East European countries.
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 10
MITNIK COMPANY ADVANTAGES
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 11
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 12
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 13
SALES AND SERVICE NETWORK
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 14
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 15
Project in Europe
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 16
Project in Australia
100T/150T/200T Portable Track Link Pin Press Machine After Support Service Online Support 17
Project in Brazil
FAQ


1. You are a trader or a manufacture? MITNIK MACHINE PARTS with one-stop shopping platform for engineering construction machinery parts as MITNIK have our own factory and storage warehouse and some parts of them were supply by our Joint Stock Partnership to ensure to provide excellent products and service to our customers, at competitive prices.We are manufactuer and trade integration business, our factory located on Quanzhou Nanan Distric, and our sales department is in City centre of Xiamen. 2. How can I be sure the part will fit my excavator? Give us correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing. 3. How about the payment terms? We usually accept T/T or Trade Assurance. other terms also could be negotiated. 4. What is your minimum order? It depends on what you are buying. Normally, our minimum order is one 20’ full container and LCL container (less than a container load) can be acceptable. 5. What is your delivery time? FOB Xiamen or any Chinese port : 20 days . If there are any parts in stock , our delivery time is only 0-7 days. 6. What about Quality Control? We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
