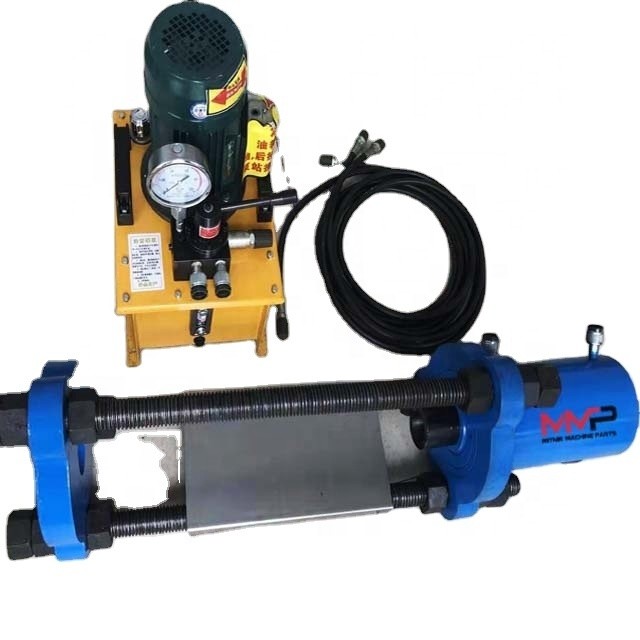

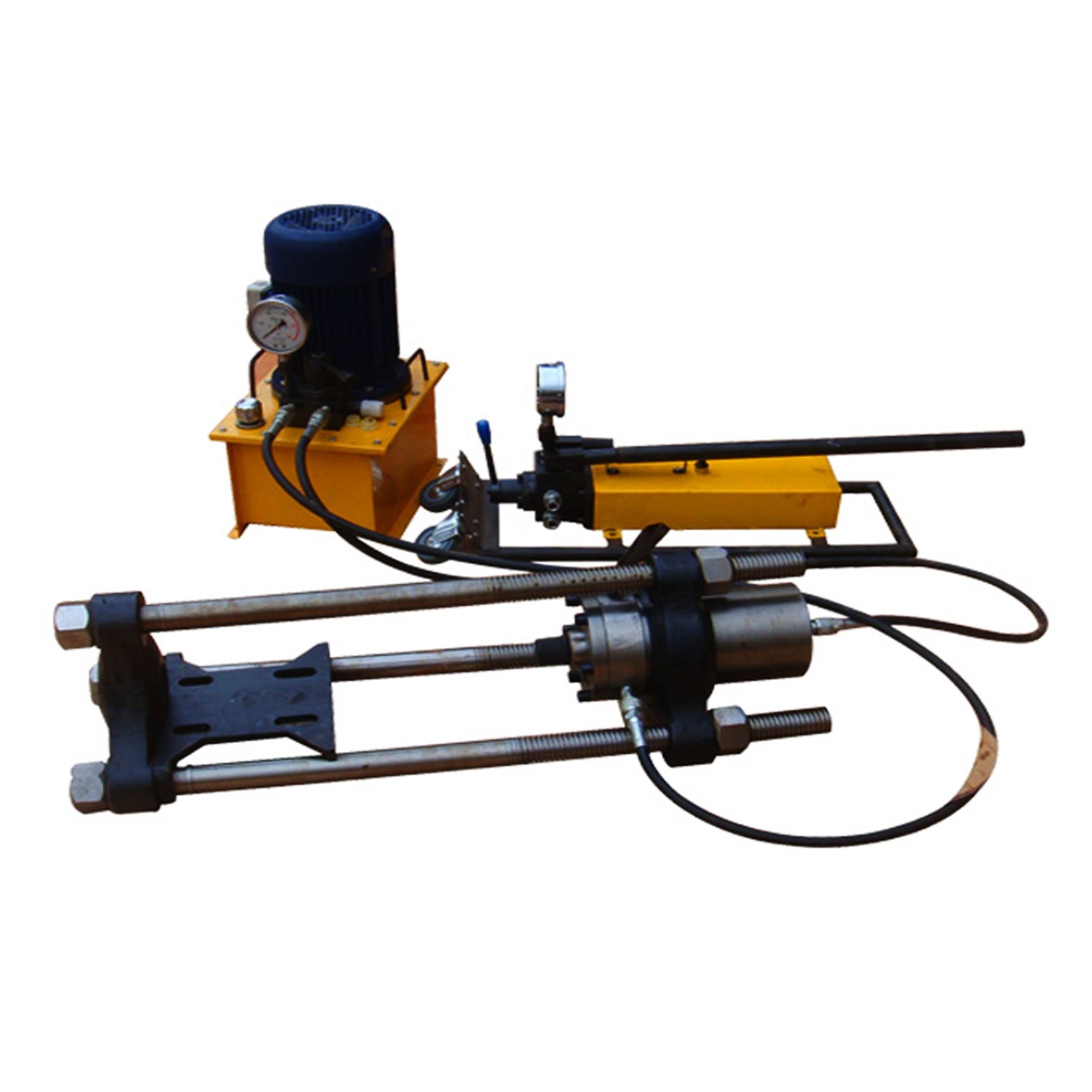

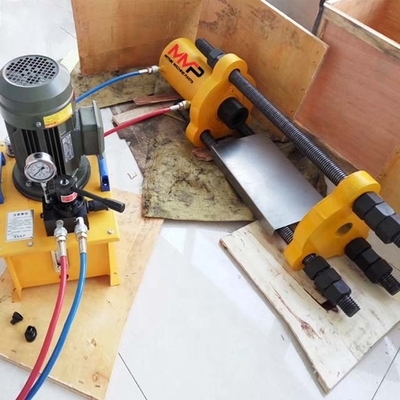

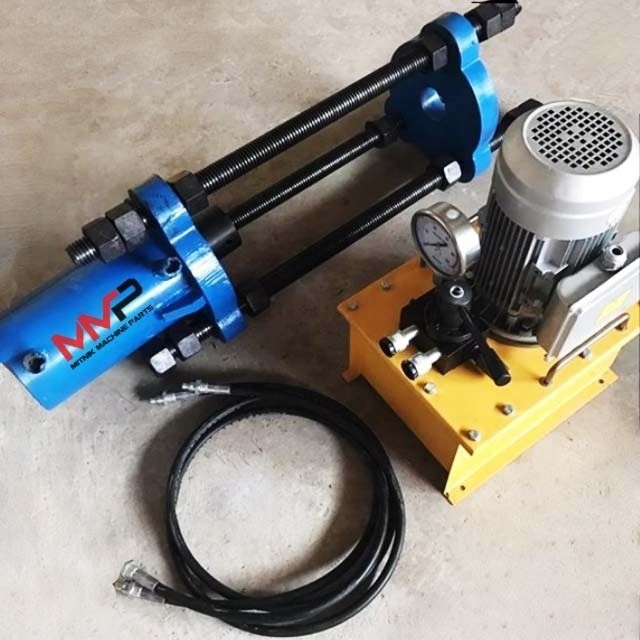

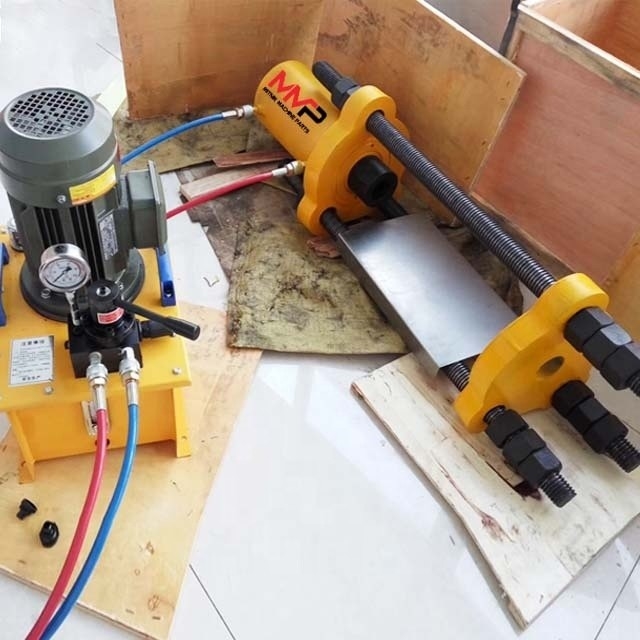

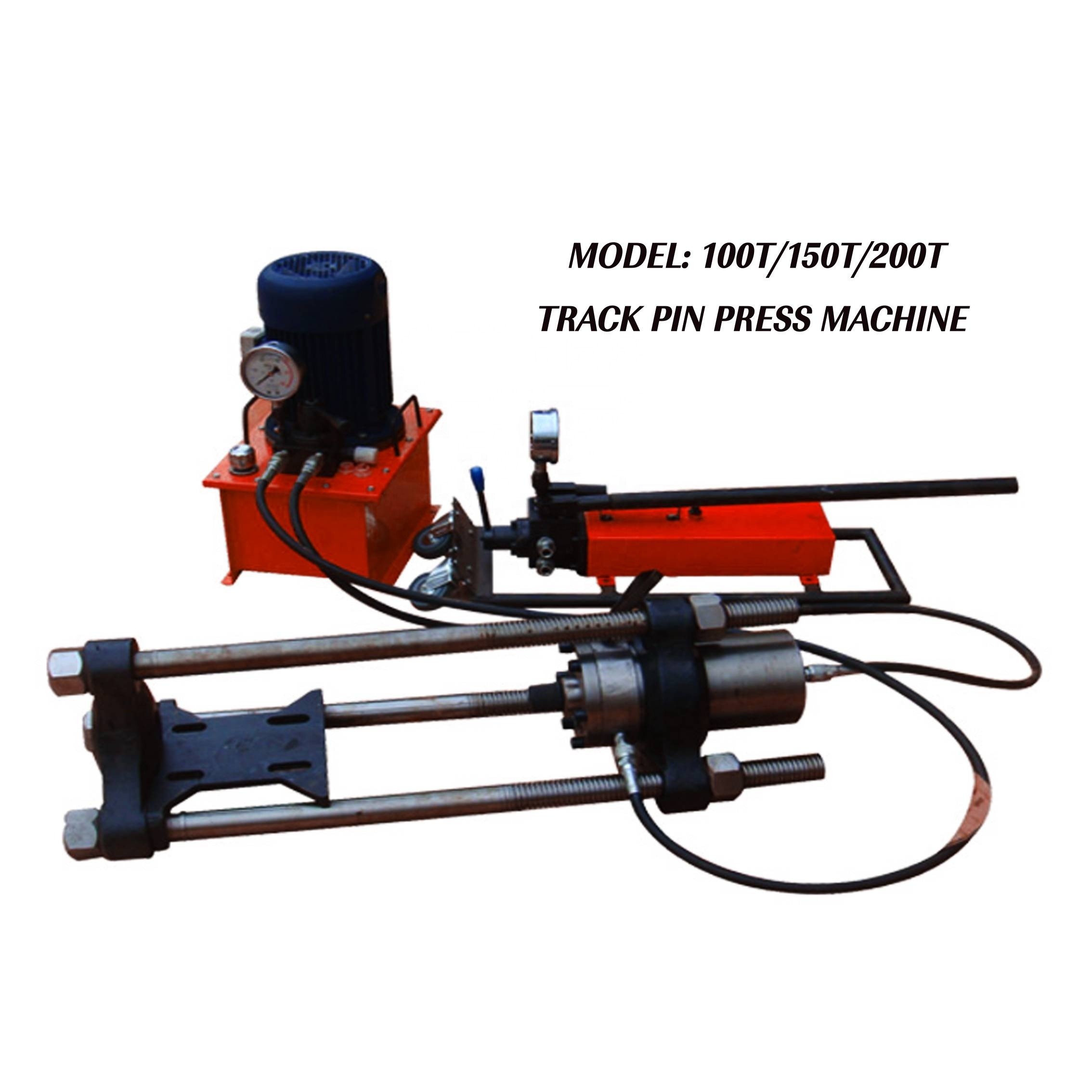

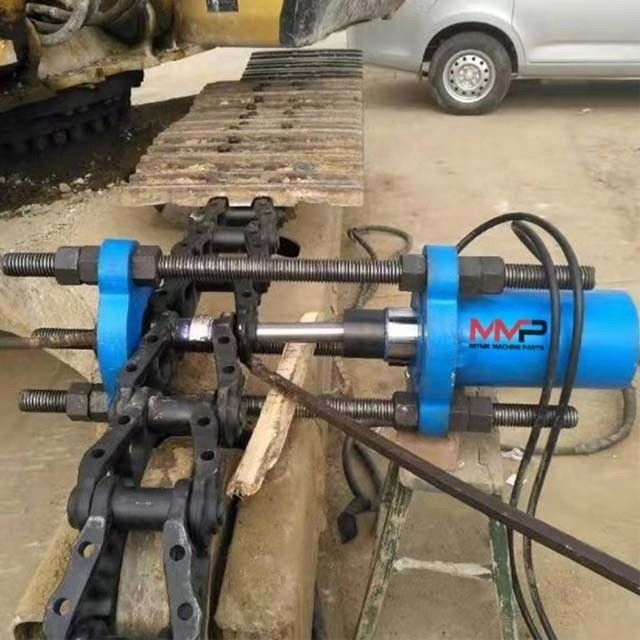

Manual Electric Hydraulic Track Pin Pusher for Excavator Bulldozer Track Link Repair

Basic Information
Place of Origin: Fujian, China
Brand Name: MMP
Certification: ISO9001
Price: $1,500.00/sets 1-4 sets
Packaging Details: Export Standard Package
Detail Information
Condition: New Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty: 1 Year, 1200-2400hrs Application: Excavator&Bulldozer Track Link Repair
Model: MMP120S/MMP200S Capacity: 100T/120T/150T/200T
Track Pin Diameter: 32mm-65mm Color: Yellow/Black
Processing: Forging Weight: 280-380KGS
MOQ: 1Set

Product Description

PRODUCTS DESCRIPTION
Manual Electric Hydraulic Track Pin Pusher for Excavator Bulldozer Track Link Repair 0
MITNIK MACHINE PARTS-MMP
Your 1st Choice in Spare Parts For Excavator&Bulldozer,
Earthmoving Machine and Other Construction Machines
Why TO Choose The MITNIK PARTS
Screw Type Track Link Press Machine for Excavator&Bulldozer Repair:
Track Link Pin Pusher /Installer is specially designed for tracked machines, tractors,loaders, shovels, excavators, etc. It is
suitable to use with JCB, Caterpiller, Komatsu and Poclain make track machines. It is safe and simple to use. Hydraulic force ensures smooth operation, thereby avoiding damage to the components of the track assembly.

The track link pin press is a special tool by utilizing the conversion from hydraulic energy into mechanical energy to
dis-assembly the track pin of a crawler excavator. Manual, electrical or manual and electrical pump is used as a power source to move the hydraulic jack forward so that the pin can be removed smoothly. Instead of gas cutting and hammering, it ensures that the track is intact. It is an ideal special tool for track excavator maintenance and assembly.

Track Pin Press Pusher Features :
1.Portable for in field repair .
2.Double acting hydraulic cylinder for one-stroke removal or installation.
3.Tooling sets for pin sizes adjustments.
4.Storage case to house all components.
5.Cast steel frame construction for extended durability.
6.Eliminate dangerous removal methods.
7.Avoid machine component damage.
8.Reduced labour hours.
MMP120S&MMP200S Track Link Press Machine Performance
1.Portable design makes you press pins at your work places more easily.;
2.Using reasonable "Screw Type" frame to ensure the intensity of the machine;
3.Hydraulic power and bidirectional hydrauic valve make it easily to operate;
4. The large diameter cylinder can provide a force up to 120T&200T.
5.For 171/175/190/203/216/228.6 260mm
6.Track link pitch Chain pin diameter: 36 /38/43/44 /48/56/58cm
Manual Electric Hydraulic Track Pin Pusher for Excavator Bulldozer Track Link Repair 1
TRACK PIN PUSHER
MAIN PARAMETES:
1.Screw type large displacement
manual reversing oil pump
2.Manual reversing pump hand force:50Kg 3.Working pressure: high pressure 0-63Mpa low pressure 4Mpa
4.Working flow: high pressure flow 7ml/ time low pressure flow 50ml/ time
5.DBS1.2 electric pump
6.Motor power 1.5KW 380V ( Or As Customer Requested)
7.Working pressure: 0-63Mpa Working flow: 1.2L/min
8.The hydraulic cylinder thrust is 100 tons and the stroke is 200mm
9. Machine Weight: 230KGS(machine+pump)
Manual Electric Hydraulic Track Pin Pusher for Excavator Bulldozer Track Link Repair 2
Manual Electric Hydraulic Track Pin Pusher for Excavator Bulldozer Track Link Repair 3
PRODUCT SPECIFICATIONS
MITNIKMACHINEPARTS-MMP Track Link Press Machine Technical Parameters
Product Name
Capacity
Assembly/Disassembly Track Pitch
Suitable for Mahcine Rerefence
MMP C Type Track Link Press Machine
80T
within 154mm
6-22T Excavator
100T
154-190mm
22-26T Excavator
150T
190-216mm
33-37T Excavator
200T
228-260mm
33-37T Excavator
MMP 4 Screw Type Track Link Press Machine
300T
Above 260mm
CATD8 D9 D10 D11N etc...
Please verify part number prior to order.

Thanks for viewing our listings. Please click "Ask A Question", or call us if you have a parts need that you do not see listed here.

We will do our best to locate the parts you need, and make every effort to save you money.
For parts information in English please CONTACT US
MITNIK PARTS PACKING
Manual Electric Hydraulic Track Pin Pusher for Excavator Bulldozer Track Link Repair 4
Manual Electric Hydraulic Track Pin Pusher for Excavator Bulldozer Track Link Repair 5
